Inconel 625 Sheets,Plates and Coils

Inconel Alloy 625 Sheets, Plates & Coils


Inconel UNS N06625 Shim Sheet Distributor in Africa, Inconel 625 Coils in Peru, Inconel DIN 2.4856 Chequered Plate Manufacturer & Exporter in India.


Inconel 625 Sheets,Plates and Coils

Sangeeta Metal is one of the leading Manufacturer, Supplier and Exporter of Inconel 625 Sheets, Plates & Coils that are actually manufactured from High Quality of Standard Raw Materials and are designed as per with national and international standards. Alloy 625 Sheets is a nickel-chromium-molybdenum alloy with an addition of niobium that acts with the molybdenum to stiffen the alloy's matrix and thereby provide high strength without a strengthening heat treatment. UNS N06625 Plates resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion. WNR 2.4856 Coils are used in chemical processing, aerospace and marine engineering, pollution-control equipment, and nuclear reactors. We offer these Inconel Alloy 625 products in custom-made shapes and sizes as per the requirements given by our clients, and that too at an affordable and market leading prices.

ASTM B443 Inconel 625 Perforated Sheet Dealer in Madagascar, Inconel Alloy 625 Sheets in Nigeria, Plates and Coils Supplier in South Africa.

Standard Inconel 625
WERKSTOFF NR. 2.4856
UNS N06625
AFNOR NC22DNB4M
GOST ХН75МБТЮ
JIS NCF 625
BS NA 21
OR ЭИ602
EN NiCr22Mo9Nb



Specification

Grades Inconel 625 (UNS No. N06625)
Standards : ASTM, ASME and API
Specifications : ASTM B 443 / ASME SB 443
Range : 5 mm To 50 mm thick in 1000 mm TO 1250 mm width & 2500 mm Length.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)



Chemical Properties

Grade Ni Fe C Mn Si Cu Cr S Al
Inconel 625 58.0 min 5.0 max 0.10 max 0.50 max 0.50 max - 20.0 - 23.0 0.015 max 0.40 max



Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.4 g/cm3 1290-1350℃ 760 min. 345 min. 30 %



Types Of Inconel 625 Sheets, Plates and Coils

Inconel 625 Sheets Supplier in Madagascar
Inconel 625 Plates Exporter in Egypt

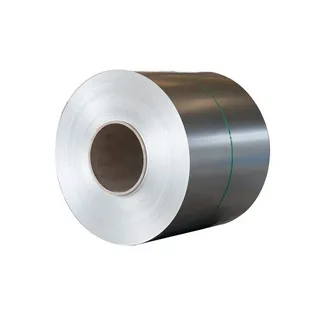

Inconel UNS N06625 Coils Stockholder in Libya

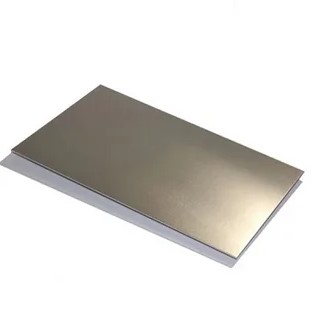

Inconel Werkstoff Nr. 2.4856 Shim Sheet in Africa
Inconel Alloy 625 Plain Sheet Dealer in Brazil
Inconel Alloy 625 Perforated Sheet Stockiest

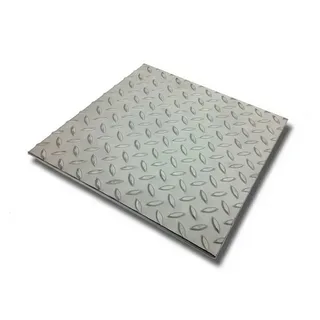

ASME SB 443 Inconel 625 Alloy Chequered Plate
ASTM B443 Inconel 625 Sheets and Plates in Ghana
B443 Alloy 625 Rolls Exporter
Inconel 625 Circles in South Africa
Inconel 625 Strips Supplier in Nigeria
Inconel Alloy 625 Flat Dealer in Chile
Inconel 625 Blank Manufacturer in India
Inconel Alloy 625 Foils in Tanzania
Inconel 625 Diamond Plate Trader in Algeria
Inconel 625 ASTM B443 Profile in Zambia
