Sangeeta Metal is an ISO 9001:2015 certified company specialising in the manufacturing, trading, stocking, supplying, and exporting of ASTM B564 Monel 400 Flanges. Our mission is to provide innovation, quality, and superior service for each product we provide. Here, our primary goal is to achieve the best results to satisfy all our clients. Sourced from high-grade nickel with copper and other metals, our Monel 400 flanges offer great strength and excellent resistance to several corrosive atmospheres. Our UNS N04400 Monel 400 Lap Joint Flanges are cost-effective while remaining neutral to corrosive fluids, which can be used repeatedly.
Our W.Nr 2.4360 Monel 400 Male & Female Flanges cater to the oilfield fabrication, offshore, and petrochemical industries. These flanges are age-hardened, providing excellent resistance to caustic solutions, seawater, chloride solutions, and nitric acids, even under extreme temperatures.
Sangeeta Metal stays attuned to market trends to create sustainable and customisable products. Our Alloy 400 Flanges are fully certified, ensuring 100% durability and reliability for your demanding applications. Trust us as your leading Monel 400 flanges supplier and manufacturer.
| Grades | Monel 400 (UNS No. N04400) |
| Standards | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Specifications | ASTM B 564 / ASME SB 564 |
| Size | 1/8" NB TO 48"NB. |
| Range | 15 NB to 300 NB |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#. PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Monel Alloy 400 Blind
Flanges
Alloy 400 Weld Neck
Flanges

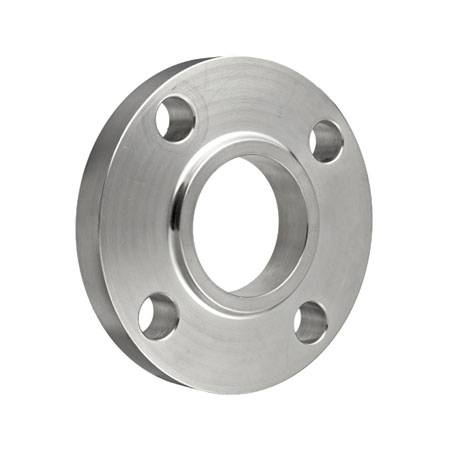

Monel 400 Lap Joint
Flanges
Monel Alloy 400 Slip-On
Flanges
Monel Alloy 400 Socket
Weld Flanges

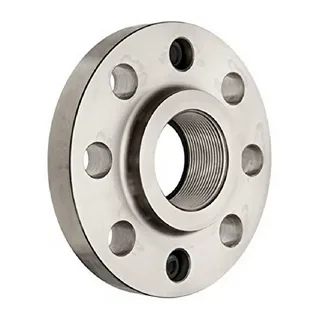

Monel Alloy 400 Threaded
Flanges
| Standard | WERKSTOFF NR. | UNS | AFNOR | GOST | JIS | BS | EN |
| Monel 400 | 2.4360 | N04400 | NU-30M | МНЖМц 28-2,5-1,5 | NW 4400 | NA 13 | NiCu30Fe |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
| Monel 400 | 63.0 min | 1.0 - 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 - 34.0 | 0.50 max | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
