Sangeeta Metal is a top supplier and exporter of Inconel 625 flanges made from premium raw materials and built to meet global and domestic regulations. The exceptional resistance to corrosion and oxidation of Alloy 625 flanges at elevated temperatures makes them well-suited for sectors like aerospace, naval uses, chemical processing, and oil and gas. The exceptional corrosion resistance of the UNS N06625 flanges makes them ideal for use in marine settings.
WNR 2.4856 flanges are commonly utilised in jet engine hot zones and in chemical processing industry settings with high temperatures and corrosive conditions. Our custom Inconel Alloy 625 products are available in various shapes and sizes to meet our client's specific needs, all at competitive prices that lead the market.
Alloy 625 flanges can be found in a range of pressure classes, from 150 to 2500 and PN6 to PN64. Different types have specific uses, like the ASME SB564 Alloy 625 Orifice Flange. These flanges are utilised in condensers, the pulp and paper industry, petrochemicals, pharmaceuticals, speciality chemicals, power generation, offshore oil drilling, gas processing, and heat exchangers. The ASTM B564 UNS N06625 RTJ Flange, which is a ring-type joint flange, is created for the purpose of joining two pipes together by means of welding.
Please do not hesitate to get in touch with us for additional details regarding our Inconel 625 flange items and costs.
| Grades | : | Inconel 625 (UNS No. N06625) |
| Standards | : | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Specifications | : | ASTM B 564 / ASME SB 564 |
| Size | : | 1/2” to 36″ |
| Class | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Pressure | : | DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |

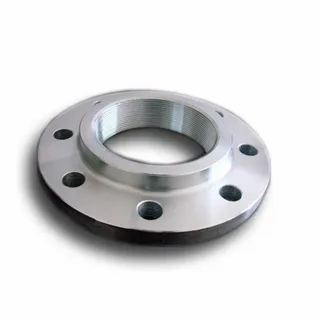

Inconel 625 Slip On
Flange

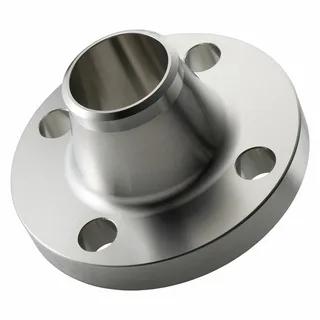

625 Inconel Welding
Neck Flanges

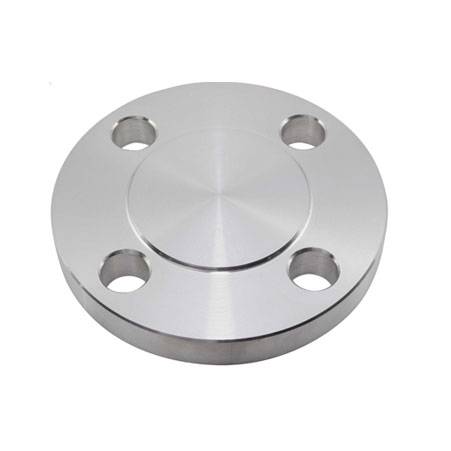

Inconel 625 Blind Flange

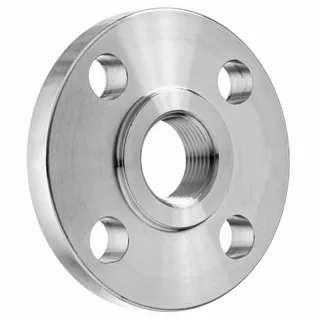

Inconel 625 Socket
weld Flange

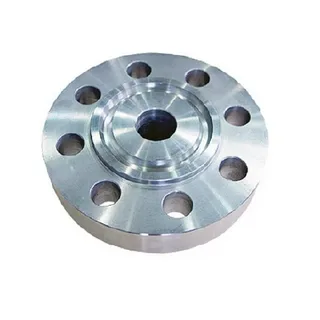

Inconel 625 Ring Type
Joint Flange

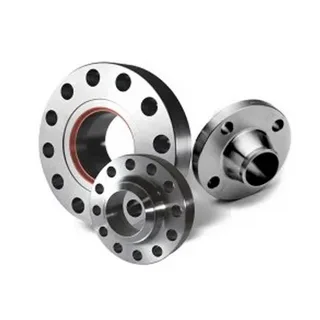

Inconel 625 Forged
Flange
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | Ni | Fe | C | Mn | Si | Cu | Cr | S | Al |
| Inconel 625 | 58.0 min | 5.0 max | 0.10 max | 0.50 max | 0.50 max | - | 20.0 - 23.0 | 0.015 max | 0.40 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1290-1350℃ | 760 min. | 345 min. | 30 % |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
| Inconel 625 Flanges | 1/2″ (15 NB) to 48″ (1200NB) |
| 625 Inconel Slip on Flanges | 1/2″ NB – 12″ NB |
| 625 Inconel Alloy Blind Flanges | 1/2″ NB – 24″ NB |
| SW Inconel Incoloy 625 ASME SB 564 Nickel Alloy Flanges | Nickel Alloy Inconel 625 Blind BL Flanges 1" DN25 Class 300 ANSI B16.5 Forged RF |
| SCH20 WN Inconel 625 Stainless Steel Flanges | ASTM B16.47 Plate RF 600# Nickel Alloy Inconel 625 Flanges |
| DN15-DN300 Inconel 625 Flanges | ASTM B564 Inconel 625 Threaded / Screwed Flanges |
| 3/4in Inconel 625 ANSI B16.5 SW Flange | Forged Alloy Inconel 625 Weld Neck Flanges |
| Nickel Alloy Inconel 625 Blind BL Flanges 1" DN25 Class 300 ANSI B16.5 Forged RF | Socket Weld Flanges 4'' SCH40s ASTM Inconel 625 ASME B16.5 CL 150 RF Flange |
| Large Selection of Inconel 625 Blind Flanges | Inconel® Alloy 625 Tongue & Groove Flanges |
| Inconel® Alloy 625 Socket Weld Flange Supplier | Alloy 625 High Hub Blinds Flanges |
| 2.4856 SORF Flanges | Grade 625 Inconel WNRTJ Flanges |
| ASTM B564 Inconel 625 Pipe Flange | 2.4856 WNFF (Weld Neck Face Flanges) |
